Full Automatic High-Accuracy Chocolate Wrapping Machine with 200-260 pics/min Packing Speed for Candy and Chocolate

  • 1
  • 2
  • 3

Place of Origin : CHINA

Brand Name : SHENGLI

MOQ : One Set

Price : USD55000.0-USD210000.0

Packaging Details : Export wooden cases

Supply Ability : 20 Sets/Month

Certification : CE

Delivery Time : 45-60 Days

Payment Terms : T/T,L/C

function : Wrapping, Gluing

application : chocolate , candy

warranty : 1 Year

Filling Material : Solid

Application : Candy/chocolate

Packing material : Foil/paper

Contact Now

Full Automatic High-Accuracy Chocolate Wrapping Machine with 200-260 pics/min Packing Speed for Candy and Chocolate

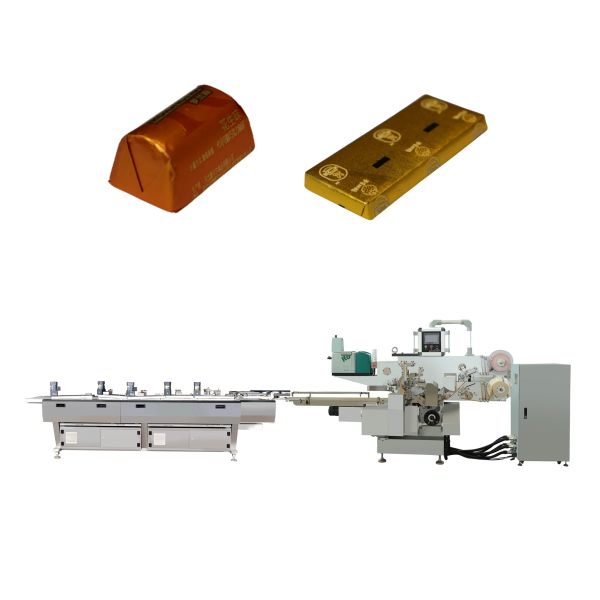

This robust folding and aluminum foil wrapping machine achieves high-speed packaging for chocolate bars at up to 260 pieces per minute. Its compact design is suitable for various solid products, including biscuits, Pu'er tea, and soap. Customization for different shapes and sizes is achieved through straightforward mold changes.

Full Automatic High-Accuracy Chocolate Wrapping Machine with 200-260 pics/min Packing Speed for Candy and Chocolate
System Configuration

The complete system consists of:

  • 1 Unit SL-SBZB450D Folded Packing Machine
  • 1 Unit SL-SBZL500 Arranging and Feeding Machine
Model Name Material Picture
SL-SBZB450D Folded Packing Machine Machine body: spherical iron; Clip: alloy steel; Candy contact parts: stainless steel 304 and PU Full Automatic High-Accuracy Chocolate Wrapping Machine with 200-260 pics/min Packing Speed for Candy and Chocolate
SL-SBZL500 Arranging and Feeding Machine Machine body: carbon steel; Candy contact parts: PU Full Automatic High-Accuracy Chocolate Wrapping Machine with 200-260 pics/min Packing Speed for Candy and Chocolate
Packing Machine Technical Specifications
Main Specifications and Technical Parameters
Packing Speed 100ppm
Chocolate Size - Length 155mm
Chocolate Size - Width 76mm
Chocolate Size - Height 10mm
Total Power 8kW
Power Supply 380V/220V 50HZ 3P (voltage must be stable)
Air Supply 0.6Mpa
Packaging Qualification Rate 98%
Wrapper Width 200mm
Wrapper Material Foil/PET/Film (must be easy to fold)
Wrapper Roller Size Paper coin diameter: 76-90mm, roller diameter ≤300mm
Air Compressed 0.6MPa
Air Displacement 0.6 m³/min
Full Automatic High-Accuracy Chocolate Wrapping Machine with 200-260 pics/min Packing Speed for Candy and Chocolate Full Automatic High-Accuracy Chocolate Wrapping Machine with 200-260 pics/min Packing Speed for Candy and Chocolate Full Automatic High-Accuracy Chocolate Wrapping Machine with 200-260 pics/min Packing Speed for Candy and Chocolate
Folded Packing Machine Main Components
  • Servo motor for feeding paper - Japanese (Panasonic)
  • Touchscreen - Taiwan (Weinview) 7.5"
  • Frequency converter - Taiwan (Delta)
  • Candy sensor - Germany (LEUZE)
  • Color code sensor - Germany (SICK)
  • Paper broken proximity switch - Germany (LEUZE)
  • Oversize candy proximity switch - Germany (LEUZE)
  • Origin proximity switch - Germany (LEUZE)
  • Encoder - Italian (LIKA)
  • Solid relay - Japanese (Omron)
  • Switch power supply - China
  • Precision potentiometer - Mexico (Duoquan)
  • RO melting gum machine - Swiss (Robert)
  • PLC - Chengdu (WS)
Arranging and Feeding Machine Specifications
Technical Specification Main Components
Total Power: 2KW
Compressed Air: 0.6Mpa
Frequency Converter: Taiwan (Delta)
Company Introduction

Chengdu ShengLi Machinery Equipment Co., LTD specializes in the design, development, production, and sales of food processing and packing machinery. With decades of experience, we provide comprehensive automatic food processing solutions and customer services. Chengdu WealthRise Complete Mechanical Engineering Co., Ltd is a wholly foreign-owned enterprise founded in 2004.

Full Automatic High-Accuracy Chocolate Wrapping Machine with 200-260 pics/min Packing Speed for Candy and Chocolate
Package and Shipping Information
Package Standards

Wooden case package as international trade standard

Package Supply and Recovery

Supplier provides package according to customer requirements; recovery depends on customer preference

Shipping Terms

FOB SHANGHAI

Package Size and Weight (Reference)
Gross Weight Packing Machine: 1600KG
Feeding Conveyor: 1000KG
Total: 2600KG
Machine Dimensions (L*W*H) Packing Machine: 2960*1560*2150mm*1
Feeding Conveyor: 1560*860*1250mm*2, 2360*860*1250mm*1
Total Volume: 16m³
Full Automatic High-Accuracy Chocolate Wrapping Machine with 200-260 pics/min Packing Speed for Candy and Chocolate
Terms and Conditions
Warranty and Service

One-year guarantee under standard operation conditions

Acceptance Inspection

Conducted according to enterprise standards at supplier factory. Any suggestions must be provided within one month after debugging

Spare Parts

Spare parts guaranteed for one year (excluding losses due to incorrect operation). Detailed spare parts and tools information available in Appendix 1.

Installation and Debugging

Facility installation and debugging completed at BUYER's factory by assigned engineer from SELLER's factory (typically one person). BUYER responsible for all expenses including transportation, meals, accommodations, plus additional USD100 per person per day during installation and debugging.
